Micro Power operational Amplifier,SGM8542 Replace AD8542.
SGM8542
SGM8542.pdf
SGM8542.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
0.8mV Typical VOS
? Unity Gain Stable
? Gain-Bandwidth Product: 1.1MHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:
-0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 46μA/Amplifier
? Small Packaging
SGM8542 Available in SOIC-8 and MSOP-8

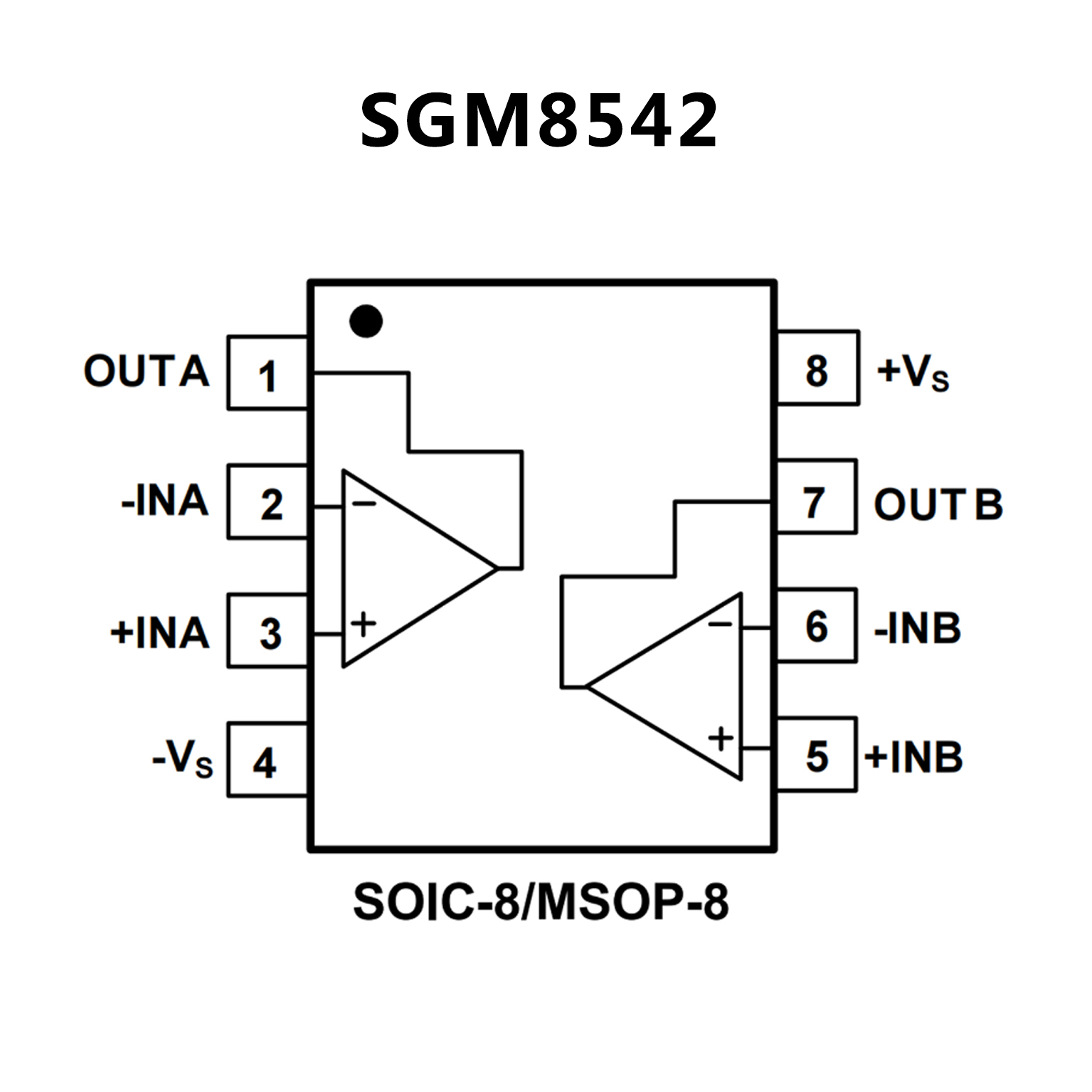

PIN CONFIGUTION
優勢替代
FEATURES
? Single-Supply Operation: 2.7 V to 5.5 V
? Low Supply Current: 45 A/Amplifier
? Wide Bandwidth: 1 MHz
? No Phase Reversal
? Low Input Currents: 4 pA
? Unity Gain Stable
? Rail-to-Rail Input and Output
PIN CONFIGUTION
