Automotive, High-Efficiency, Non-Synchronous Boost, SEPIC and Flyback Controller.
SGM6630Q
SGM6630Q.pdf
SGM6630Q.pdf
No.14158
FEATURES
? AEC-Q100 (Grade1) Qualified for Automotive
Applications
TA = -40℃ to +125℃
? Wide Supply Voltage Range: 2.97V to 48V
? 1A Peak Current Internal Push-Pull Driver
? 100kHz to 1MHz Switching Frequency
? 160mV (±20mV) Current-Sense Threshold
Voltage
? 6.5μA Shutdown Current (Over-Temperature)
? +27mV/-24mV Internal Reference
(Over-Temperature)
? Frequency Compensation Optimized with a
Capacitor and a Resistor
? Current Mode Control
? Adjustable Under-Voltage Lockout (UVLO) with
Hysteresis
? Pulse Skipping at Light Loads
? Cycle-by-Cycle Current Limit
? Internal Soft-Start
? Thermal Shutdown
? Available in a Green MSOP-10 Package
DESCRIPTION
The SGM6630Q is a wide VIN, high-performance, non-synchronous Boost controller. The device is capable to support Boost, SEPIC and Flyback topologies with a low-side FET as the main switch. The device has a high adjustable and synchronizable clock frequency range from 100kHz and 1MHz to reduce the overall solution size. In addition to the cycle-by-cycle current limit, the current mode operation also provides superior bandwidth and transient response. The current limit threshold can be programmed by a single external resistor. The integrated current slope compensation makes the design process simplified.
The SGM6630Q equips the built-in protection features such as thermal shutdown, internal soft-start, over-voltage protection and short-circuit protection. It consumes 3μA current in shutdown mode. The internal soft-start function can limit the inrush current when the device is turned on.
This device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and the use of this device is suitable for automotive applications.
The SGM6630Q is available in a Green MSOP-10 package.

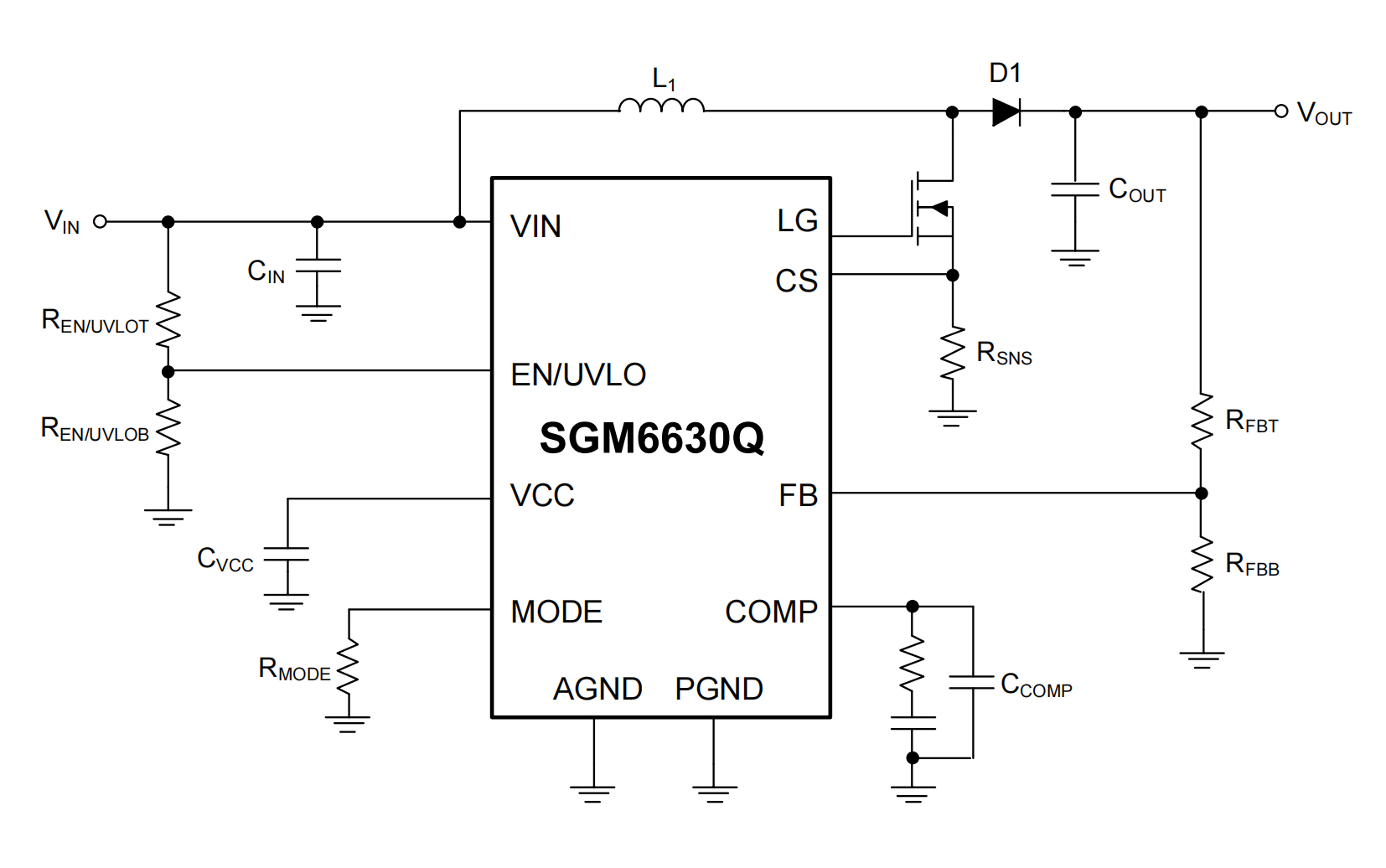

APPLICATION CIRCUIT

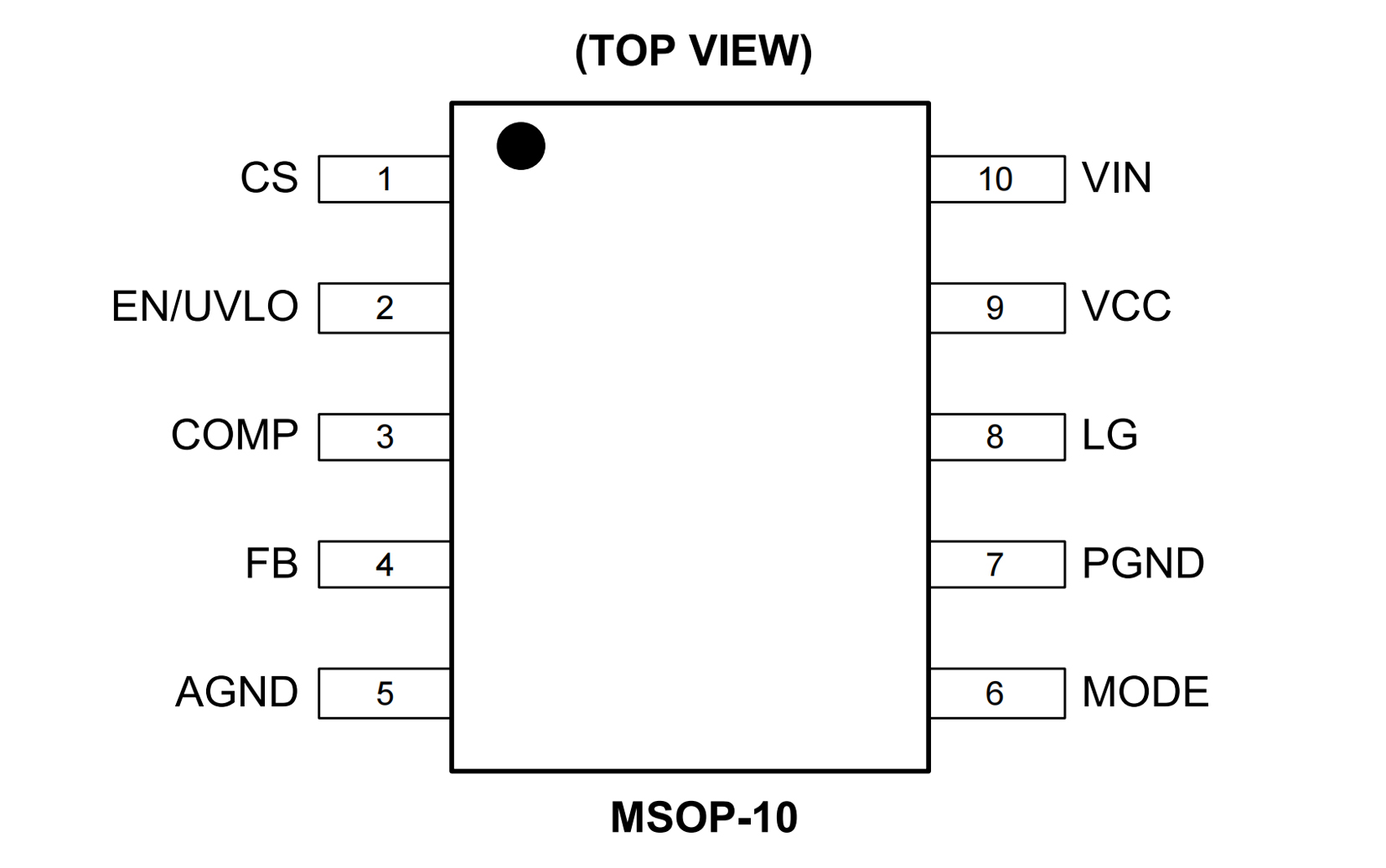

PIN CONFIGUTION
